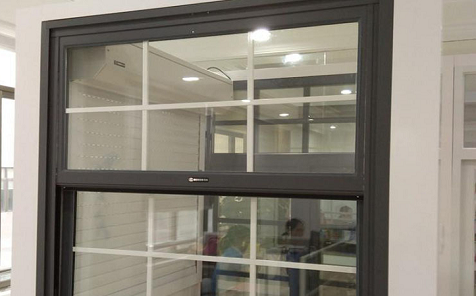

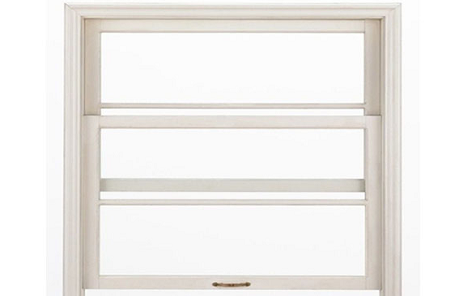

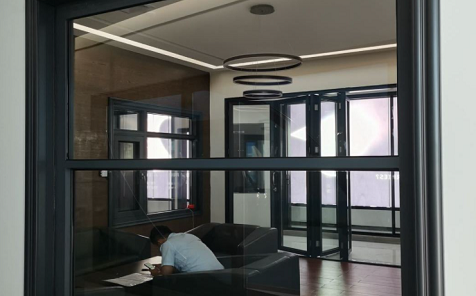

Aluminum alloy glass up and down sliding window

Aluminum alloy glass up and down sliding window

The sliding window adopts a sash equipped with pulleys to slide on the track on the window frame, no additional space is occupied by the window whether it is in the open or closed state, and the structure and installation are relatively simple.

Consult

Contact

Profile	Aluminum Alloy	thermal broken/non thermal break
	Thickness	1.4mm/2.0mm
	Surface Treatment	Powder coated/Anodized/Electrophoresis
	Color	Customized (white,black,silver etc.Any color is available by INTERPON or COLOR BOND)
Glass	Type	Single/Double/Laminated/Low-e/Tinted/Reflective tempered glazing glass
	Thickness	6mm,5mm+12Air/Argon gas+5mm,customized
	Color	clear,obscure,green,gray etc.
Hardware	Brand	China top brand
	Color	White,Black,Silver
Sealant		EPDM
Flyscreen		Retractable Fiberglass
		stainless steel
Serviceability wind pressure		3000Pa
Water pressure		450Pa
Sound Proof		45Db

Noise reduction : The window sash and window frame are made of broken bridge aluminum profiles, triple-sealed design, and have a good sound insulation effect. Create a quiet room and accompany you to sleep peacefully

Thermal insulation: The frame adopts EPDM sealing strip, and the window sash adopts the hollow glass structure to save a lot of heating and cooling costs

Squeeze seal; the product has squeeze seal performance, which cannot be achieved by other frameless products

Tempered glass: high-density tempered glass, transparent, beautiful and high strength.

Aluminum sliding window
