Quick Detail:
1. Wide availability of system choice on the market at very competitive prices and short lead-in times
2. Suited for angular or complex facades
3. Slighlines are slimmer than Unitized Curtain Walling
4. Quicker production processes in the factory

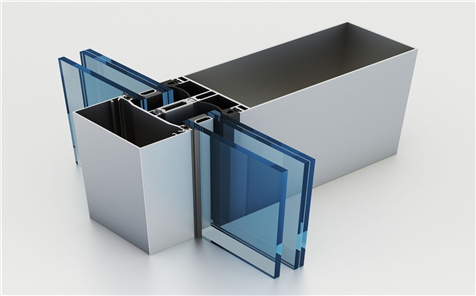

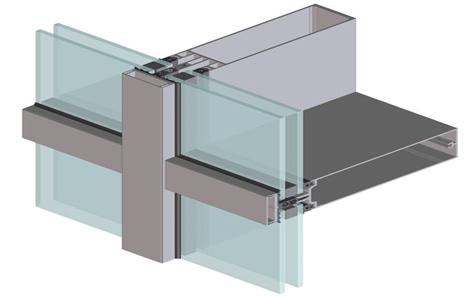

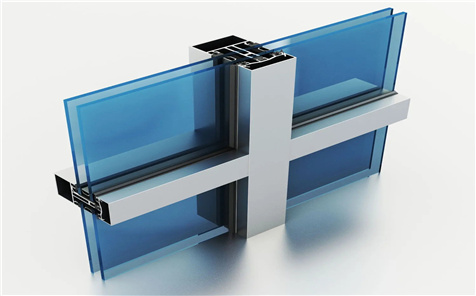

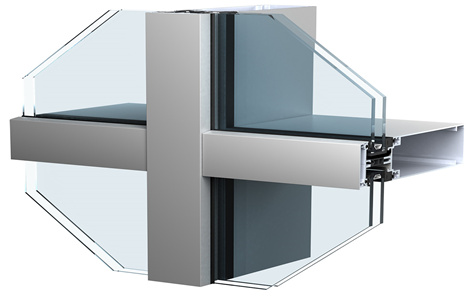

Aluminum Framed Stick system curtain walls
System width: 50 mm or customized
Supporting Frames: ab 50 mm or customized
Structural profiles: Wood profiles
Steel tubes
Open steel profilesÂ
System technology:
Free choice of material (steel or wood), for profile widths from 50 mm
Same interface profile for mullions and transoms
Overlapping via vertical and horizontal single-Piece overarching sealing profiles with different drainage levels
Simple and efficient fixing of the aluminum profile by means of screws
Alternative simple fixing technique using steel studs for steel tubes with a wall thickness from 4 mm
Ideal for vertical and polygon façades, sloped glazing and spatial structures
Glazing from outside with visible or concealed screwsÂ
Technical Data:
|
Material |
Aluminum frame,glass,accessories |
|
Profile |
a:Alloy:aluminum 6063-T5 |
|
Glass |
a: Single Glass:5mm-12mm. Double Glass:5mm+6A+5mm/5mm+9A+5mm/6mm+9A+6mm/or the others
|
|
Accessory |
Stainless/Galvanized Steel accessory,silicone sealant,
|
|
Customized |
Design And Fabricate According to Customer’s detail requirement. |
|
Hardware |
High Quality-Made in China/Switzerland/Germay, |
|
One-stop solution |
Professional design,High-quality fabrication and experienced installation |
