The Curtain Wall System is a key architectural element that enhances both the aesthetic appeal and modernity of a building.
At FACADE SOLUTION, we utilize three advanced installation methods, each specifically designed to suit different types of Curtain Wall systems. These methods ensure optimal performance, durability, and seamless integration with the building structure.
Frameless Curtain Wall System
The Frameless Curtain Wall System is an ideal installation method for projects requiring a seamless, all-glass appearance. This system eliminates visible frames, creating a sleek and modern aesthetic.
Typically, the Frameless Curtain Wall System is best suited for low-rise buildings since, while it offers durability, it has a lower weight-bearing capacity compared to Unitized or Stick Type systems.
Installation Process
- A metal framework is installed from inside the building, ensuring structural support.
- Metal cladding panels are added to conceal the framework, enhancing the interior aesthetics.
This system provides a high-end, transparent look, making it a popular choice for commercial spaces, showrooms, and modern office buildings

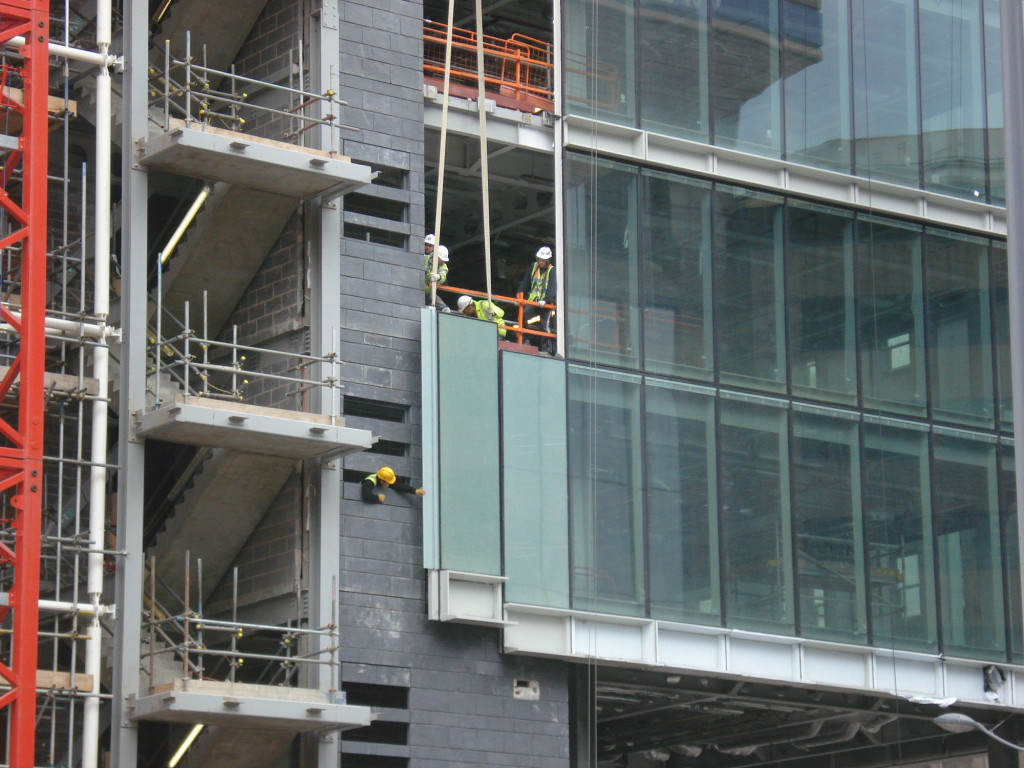

Unitized System
The Unitized System is an advanced curtain wall installation method where glass panels, frames, and aluminum structures are pre-assembled in a factory before being delivered to the site for installation. This pre-fabrication process significantly reduces on-site installation time, ensuring higher precision, efficiency, and quality control.
Due to its speed and reliability, the Unitized System is widely used in Thailand and is suitable for various curtain wall types, including:
- Frame Curtain Wall
- Semi-Frame Curtain Wall
- Seamless Curtain Wall
This installation method is particularly beneficial for high-rise buildings and projects requiring fast, efficient, and high-quality façade solutions.
Stick Type System
The Stick Type System is a curtain wall installation method where the aluminum framework is first assembled and secured to the building structure, followed by the installation of glass panels onto the pre-installed framework.
Key Benefits of the Stick Type System
- Flexible Installation – Glass panels do not need to be installed in a specific sequence, providing greater adaptability during construction.
- Cost-Effective – This method requires fewer materials and has lower overall costs compared to other systems.
- Fast Installation – With a straightforward assembly process, the installation time is reduced.
The Stick Type System is well-suited for various façade types, including:
- Frame Curtain Wall
- Semi-Frame Curtain Wall
- Seamless Curtain Wall
This installation method is widely used for mid-rise buildings and projects with budget constraints, offering a balance between cost, efficiency, and design flexibility.
