Glass Facade Curtain Wall

    Home > Products > Glass Facade Curtain Wall
Aluminum Low E Laminated Glass Stick Built Frame Curtain Wall

A stick built curtain wall refers to the method of construction by which the curtain wall is assembled on site, piece by piece.  The manufacturer delivers each individual component; glass, mullion, spandrel; and glaziers assemble the curtain wall directly on the structure.

The stick built system requires installation by highly skilled laborers on site, increasing the installation cost and causing some quality control issues.  However, the on site installation allows for easier detailing of connections and larger tolerances in the building structure.



The advantage of a stick built system comes from its cost savings over a unitized system.  On small project, the scale is too small to make it economical to prefabricate panels, so the added on-site time and cost is worth the higher unit cost associated with a small scale unitized system.  For this reason, stick built systems are typically used on small to mid-sized projects.



Specification:stick installation curtain wall

Profiles

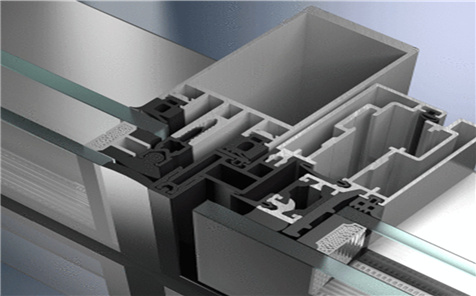

1. 6063-T5 high quality thermal break aluminium profile, thickness 1.2MM-2.0 MM

2. 6063-T5 high quality non-thermal break aluminium profiles, thickness 1.2MM-2.0 MM

Glass

1. Double tempered glass

2. Tinted glass, Low-E glass

3. Single tempered glass

4. Laminated glass

Hardware

1. German brand: HOPPE, Roto, Siegenia, etc.

2. Chinese brand: Kinlong, HOPO, etc.

Mesh

1. Stainless steel security mesh

2. Aluminium security mesh

3. Fiberglass fly screen

4. Retractable fly screen

Finish

1. Powder coated

2. Anodized

3. Electrophoresis

4. Wood grain

5. Fluorine carbon coated

Aluminium stick installation curtain wall



It is the structural member type glass curtain wall as its finish material. According to the frame appearance style, it can be classified into structural member type concealed frame glass curtain wall, structural member type semi-concealed frame curtain wall, structural member type exposed frame glass curtain wall, as well as structural member type exposed concealed frame mixed glass curtain wall and so on. Different system structures shall be adopted for different styles, and each style has its own unique technical characteristics.
