Modern and Traditional Design Aluminum Side Hinged Window

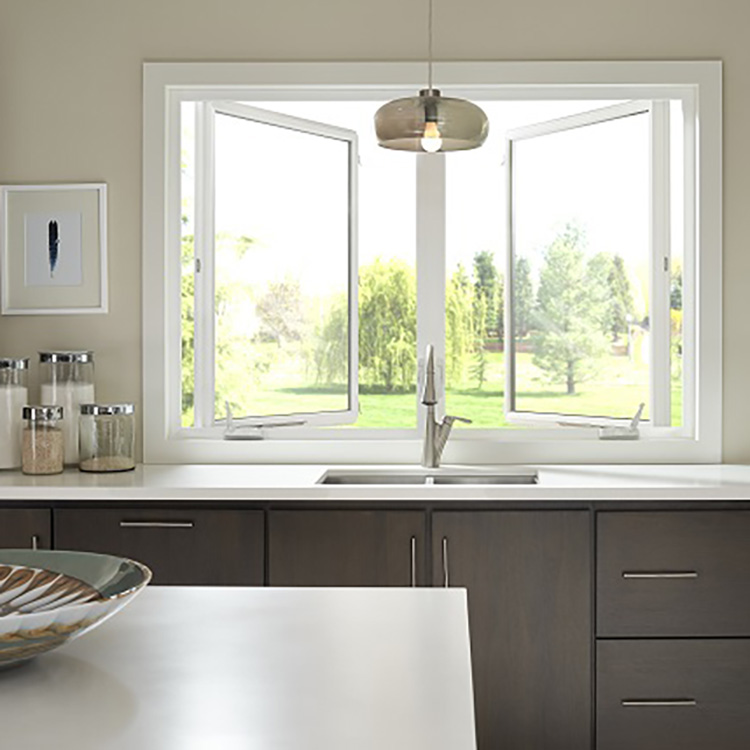

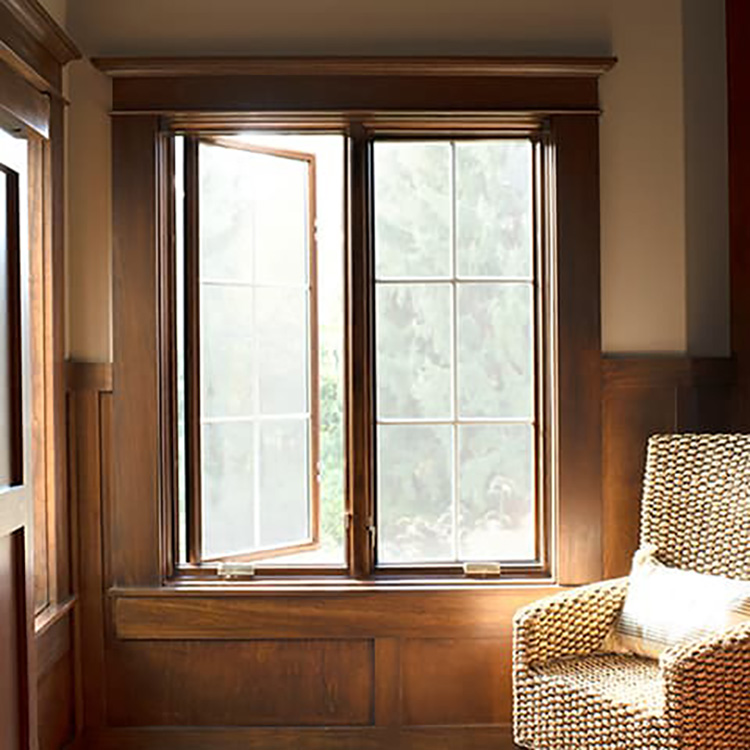

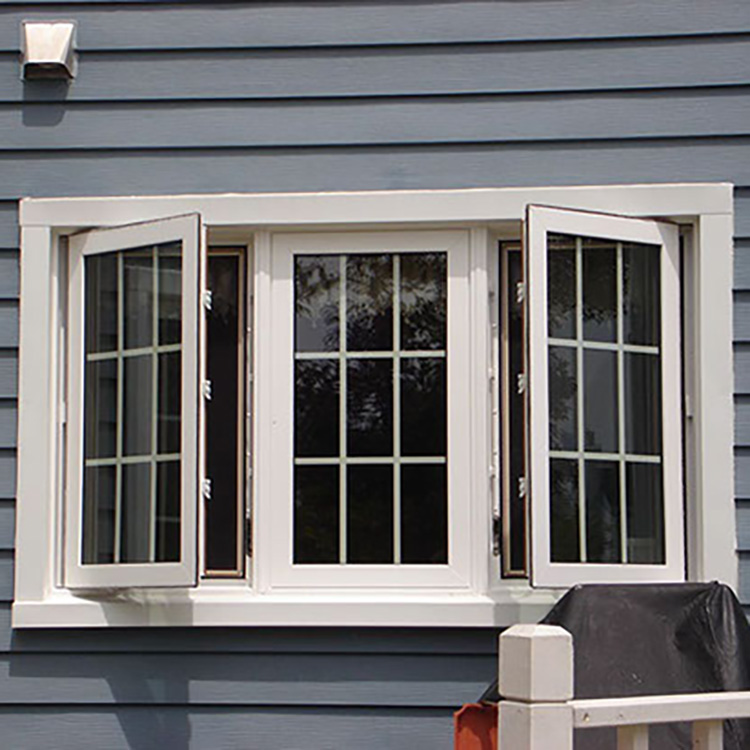

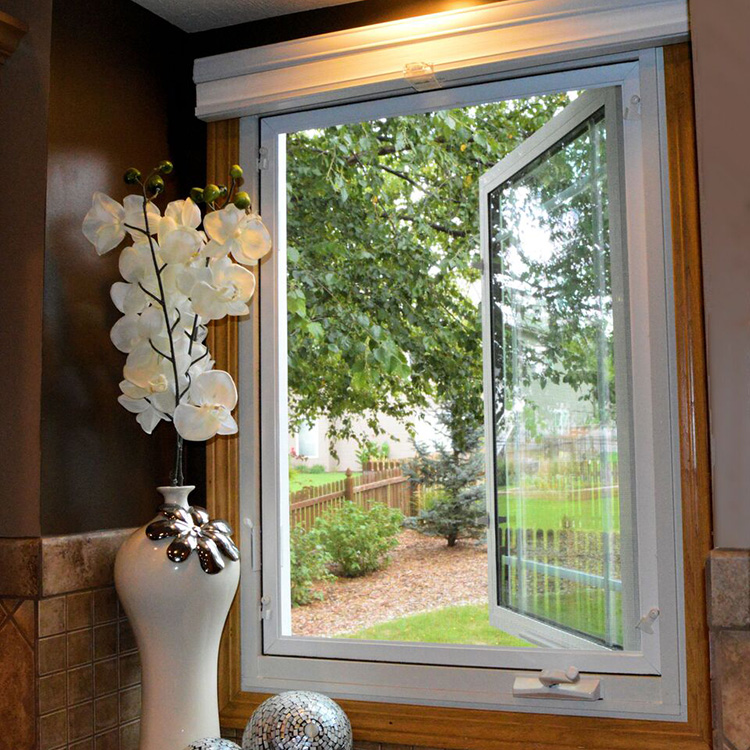

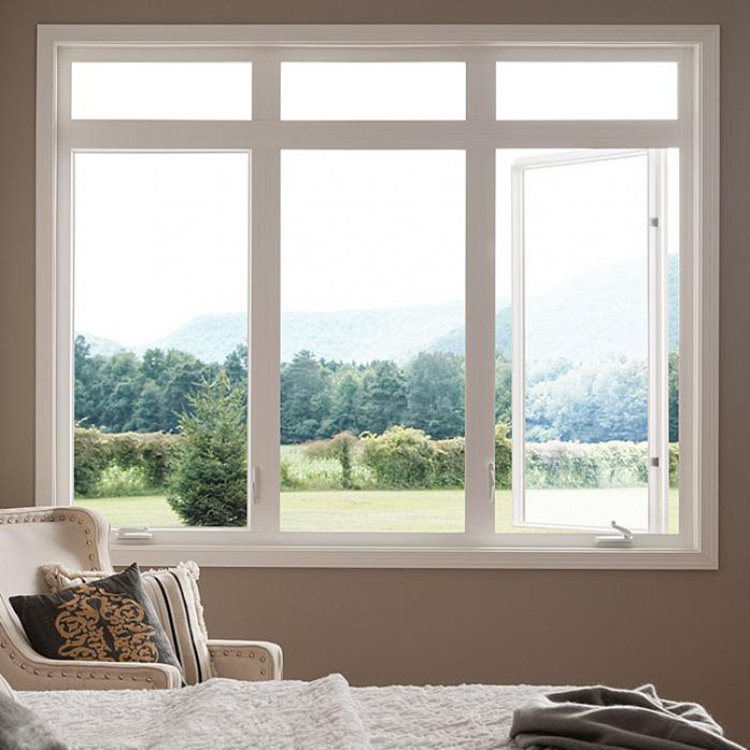

Hinged windows are hinged on the side and crank open outward to the left or right allowing for full top to bottom ventilation, also named casement windows. Common above kitchen sinks, hinged windows give you the flexibility to group them in stunning combinations. And fixed insect screens can only be installed on windows and can be permanently fixed with fasteners. These fixed insect screens are easily detachable, low maintenance, fully customizable, and offer complete insect protection. If you live near a garden or water, these windows will allow you to ventilate without being disturbed by mosquitoes.

Aluminum hinged windows are made of aluminum architectural profile frame and tempered insulating glass. The sash structure is divided into ordinary aluminum windows and aluminum windows. Aluminum hinged windows are beautiful, sealed and high in strength, and are widely used in the field of construction engineering.

Specifications

Profiles

6063-T5 high quality thermal break aluminium profiles
6063-T5 high quality non-thermal break aluminium profiles

Glass

Single tempered glazing: 5mm, 6mm, 8mm, 10mm, 12mm…

Double tempered glazing: 5+12A+5mm, 6+12A+6mm …
Laminated glazing: 6.38mm, 8.76mm, 10.76mm, 11.14mm, 11.52mm …
Tinted/LowE/Reflective/Clear/Obscure/Opague/ Fritted…

Special performance glass: Fireproof glass, Bulletproof glass

Hardware

Chinese Brand
Australian Brand
German brand

Accessories

Stainless steel screws, EPDM rubber gasket to ensure good quality

Mesh

Fiberglas Flyscreen
Retractable Flyscreen
Aluminium / Stainless Steel Security Mesh

Finishing

Powder coating (6-20yr warranty)
Anodized
Eletrophoresis
Wood Grain
PVDF

Regular Glass Option

Glass Composition

China K value

Europe K Value

U.S.A U Value

Summer

Winter

6mm Clear

5.44

5.02

5.74

6.17

6+12A+6

2.258

2.51

3.09

2.75

6 (Low-e)+12A+6

1.57

1.49

1.7

1.66

Advantages

1. Good ventilation

Because the window sash can be opened to the maximum extent, so that the indoor and outdoor air can be fully circulated, so the room with the hinged window is more easily ventilated and can maintain a fresh and comfortable indoor environment.



2. Security and anti-theft

The hinged window is fixed on all sides when it is closed. The linkage hardware and the handle are arranged around the window sash to operate various functions indoors. When the window sash is closed, all sides of the window sash are fixed on the window frame, so its safety performance is very high. Can play the role of anti-theft.



3. Flexible and practical

The sash of the hinged window is flexible in movement and simple in operation, so that the outside of the sash can be turned indoors, avoiding the occupation of indoor space when the inward-opening window is opened.



4. Sealing and heat preservation

The sealing and thermal insulation performance of hinged windows is good, and the sealing and thermal insulation effects of doors and windows are ensured through multi-point locking around the sash.
