PVDF Coated Aluminum Honeycomb Panel for Wall Cladding

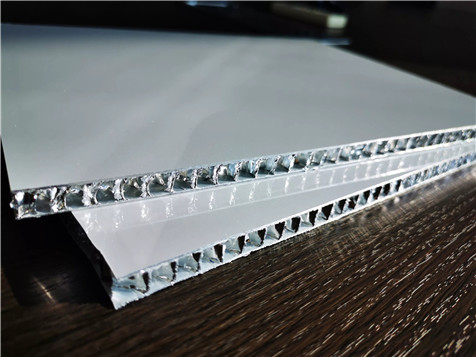

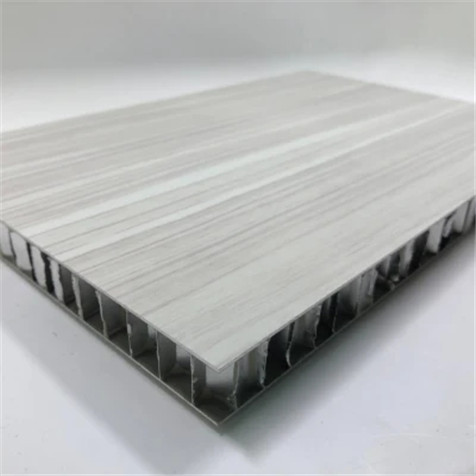

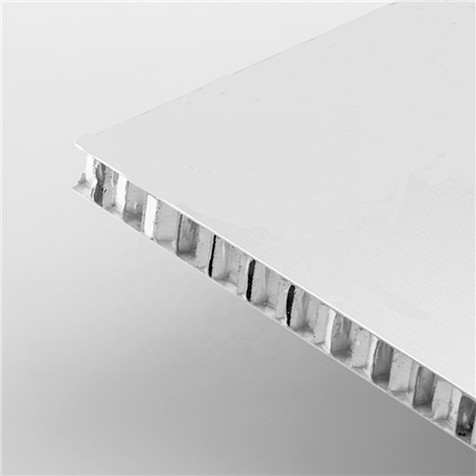

Aluminum honeycomb panels are comprised of two layers of aluminum sheets on top and bottom sides with inner aluminum honeycomb structure in the middle. The honeycomb structure is known to be lightweight while enhance the rigidity of panels in a large scale.
Aluminum honeycomb composite panel
Aluminum honeycomb panels are comprised of two layers of aluminum sheets on top and bottom sides with inner aluminum honeycomb structure in the middle. The honeycomb structure is known to be lightweight while enhance the rigidity of panels in a large scale.
|
Technical Data of Aluminum Honeycomb Panels   |
||
|
Thickness |
20mm |
  25mm |
|
Facing Aluminum skin |
1.0mm |
1.0mm |
|
Backing Aluminum skin |
 1.0mm |
1.0mm |
|
Weight (kg/m2) |
7.4 |
7.8 |
|
Mechanics function of complex planking and surface planking |
||
|
Inertia Rectangle I(cm4/m) |
19.85 |
31.67 |
|
Measurement of cutting W(cm3/m) |
19 |
24 |
|
Hardness of complex planking E.I(KN Cm2/m) |
139000 |
221700 |
|
Changeable measurement(N/mm2) |
70000 |
70000 |
|
Tensile strength of surface planking (N/mm2) |
Rm≥220 |
Rm≥220 |
|
0.2%Power of bending (N/mm2) |
Rp0.2≥130 |
Rp0.2≥130 |
|
(EN485-2:1194) Extending rate |
A50≥8 |
A50≥8 |
|
Surface decoration layer |
PVDFÂ |
|
|
Luminosity (original data) |
30-40% |
30-40% |
|
Hardness of pencil |
HB-F |
HB-F |
|
 Honeycomb Specification |
||
|
Size of honeycomb |
1/4(6.3mm) |
1/4(6.3mm) |
|
Aluminum honeycomb density |
80kg/m3 |
80kg/m3 |
|
Strength of pressure-resistant(MIL-STD-401) |
4N/mm2 |
4N/mm² |
|
Function of Acoustics |
||
|
Data of sound absorption |
0.05 |
0.05 |
|
Indicator of sound seperating (ISO717-RW) |
23 |
25 |
|
Function of Heating |
||
|
Data of heating guiding(w/m2k) |
2.25 |
2.7 |
|
Data of heating preventing R(1/m)(m2k/w) |
0.0089 |
0.0093 |
|
Data of heating passing U(k)(w/m2k) |
5.59 |
5.575 |

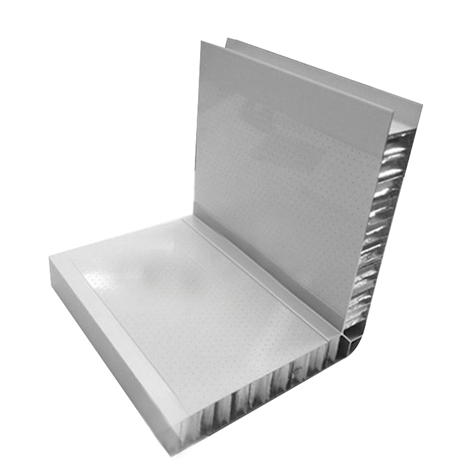

Processing
Different patterns, customized service is offered.
Features of Aluminum Honeycomb Panel
1.Extremely lightweight.
2.Excellent strength, good rigidity, and super stiffness.
3.High resistance to moisture and corrosion.
4.Fire resistance and shockproof.
5.Heat insulating and soundproof.
6.Easy to be processed into any artistic designs or unique shapes.
7.Easy and safe for installation.
8.Diversity color choices bring an elegant decorative effect.
9.Cost efficiency.
10.Recyclable, friendly to the environment.
Application
External cladding.

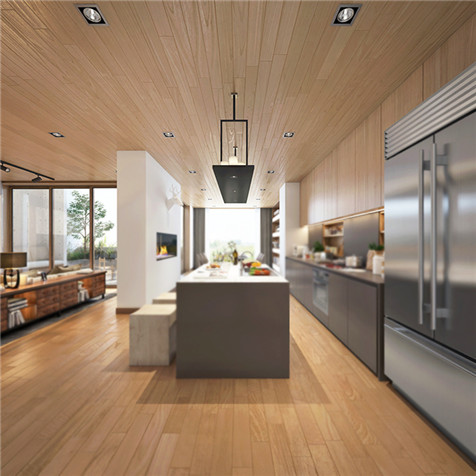

Internal decoration, ceiling and wall panels.
Railway floor and partition.
Marine partition and doors.
Furniture.
